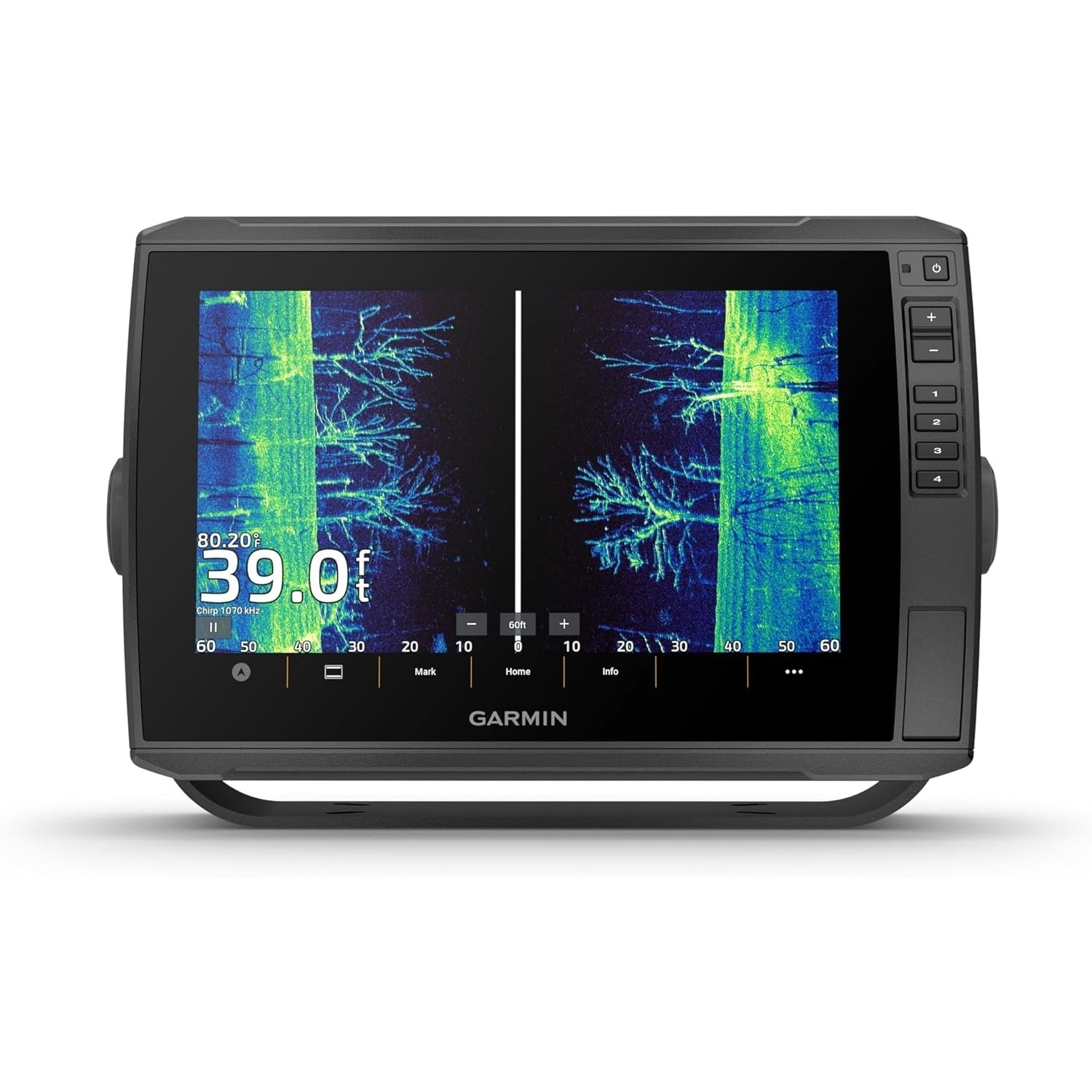

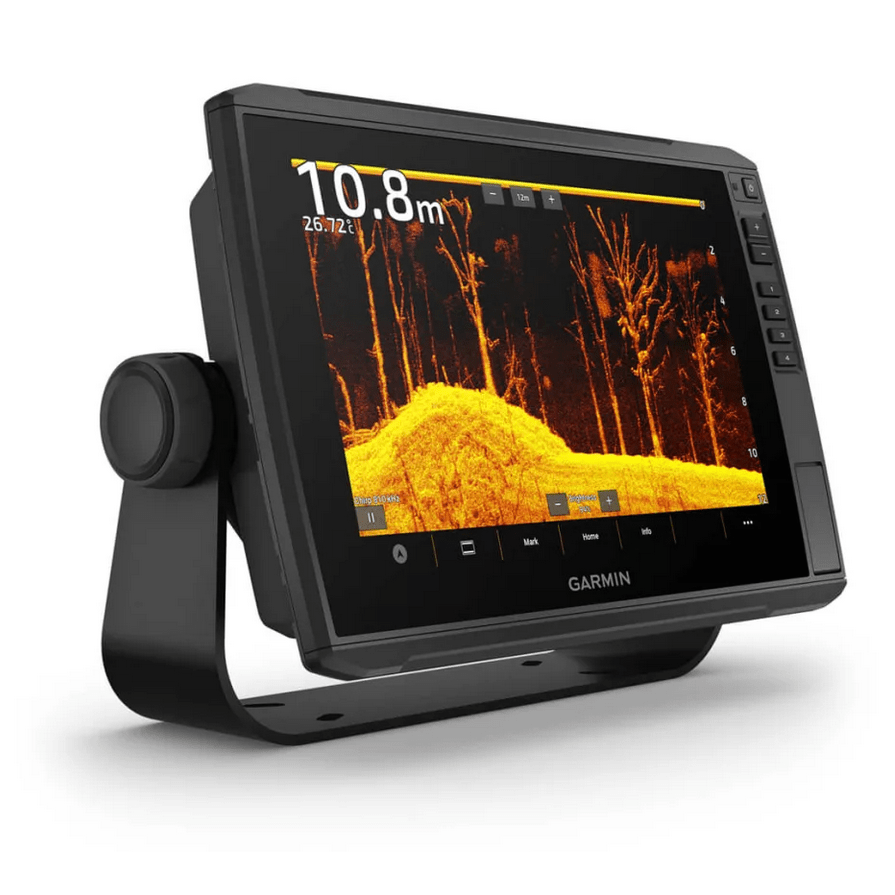

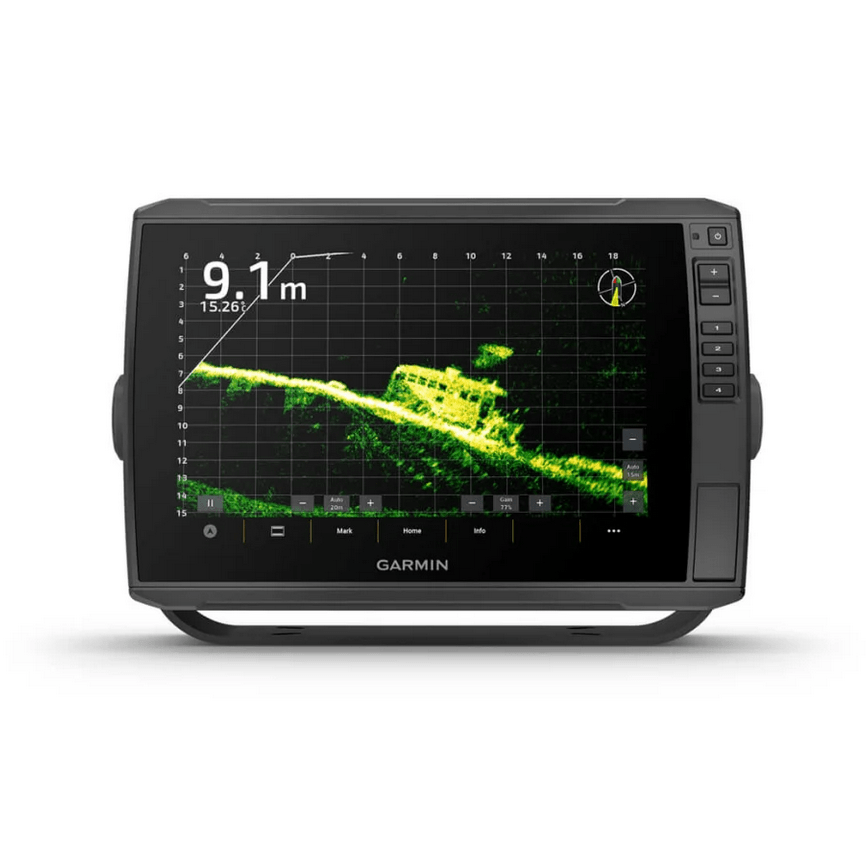

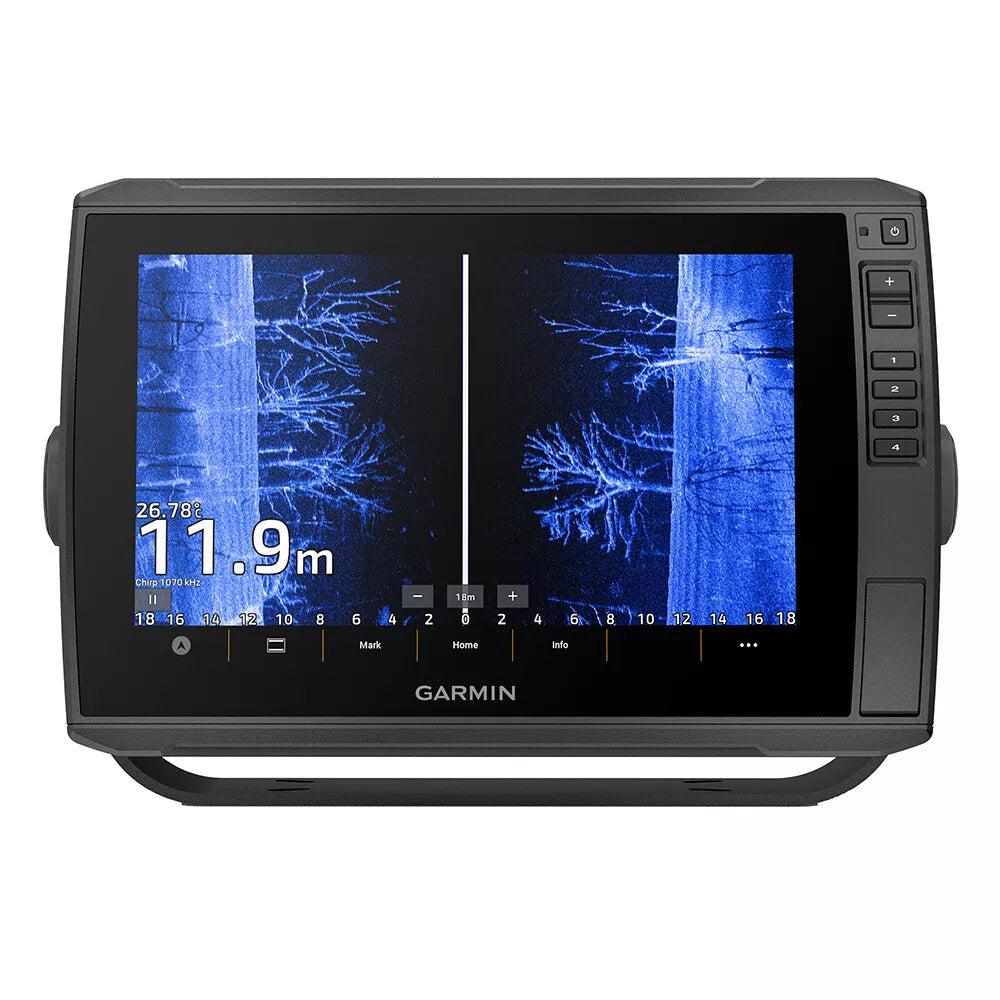

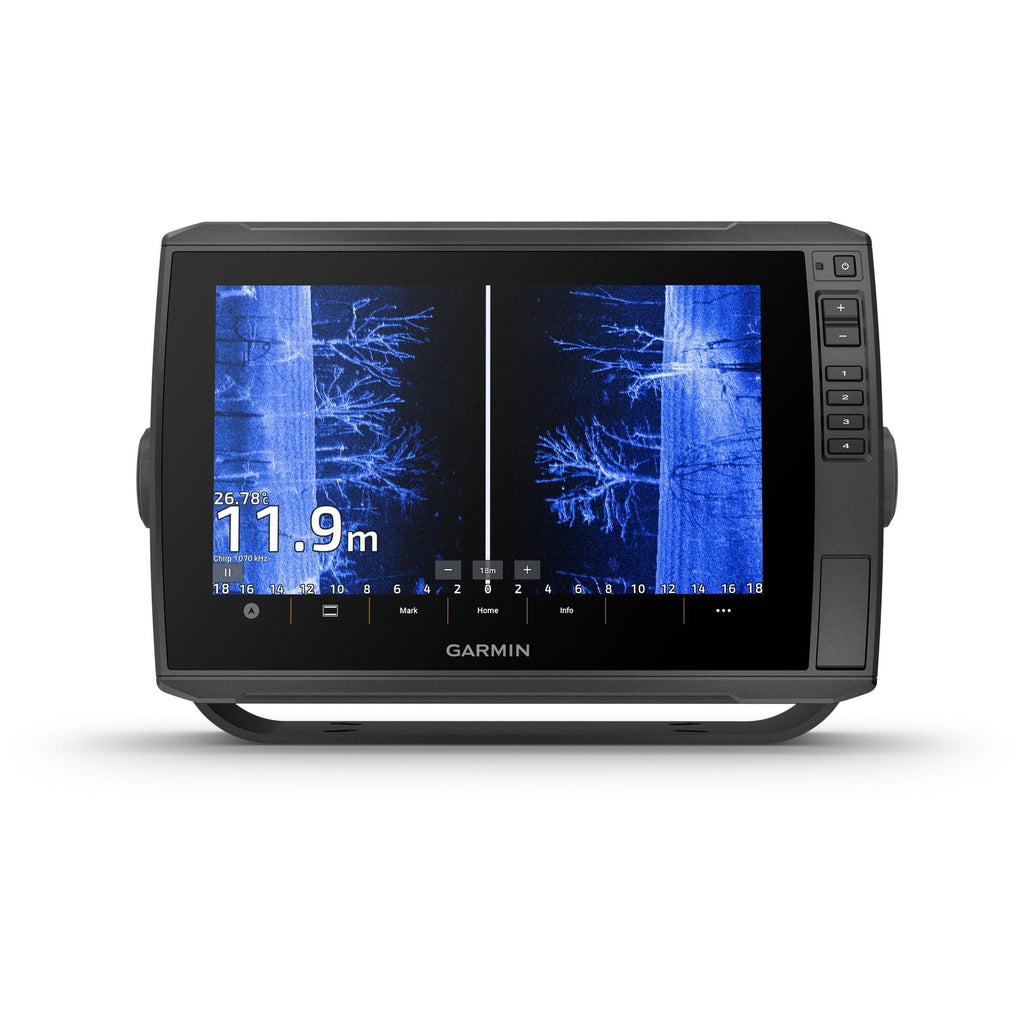

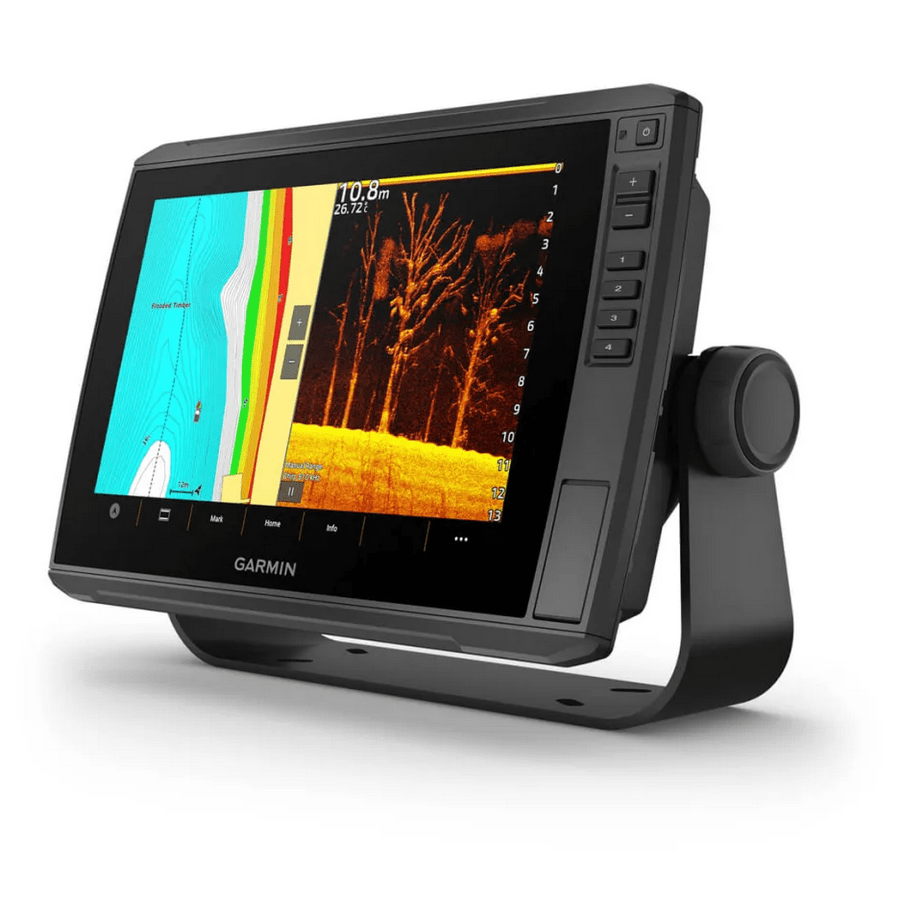

ECHOMAP™ Ultra 2 10" & 12" Chartplotters

10" / Worldwide Basemap / No

RM12,012.00

ECHOMAP™ Ultra 2 10" & 12" Chartplotters

Garmin

ECHOMAP™ Ultra 2 10" & 12" Chartplotters

010-02879-00

RM12,012.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+^™mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

Display Size 10" 12"

Charts and Maps Worldwide Basemap Garmin Navionics+

Includes Transducer No Yes

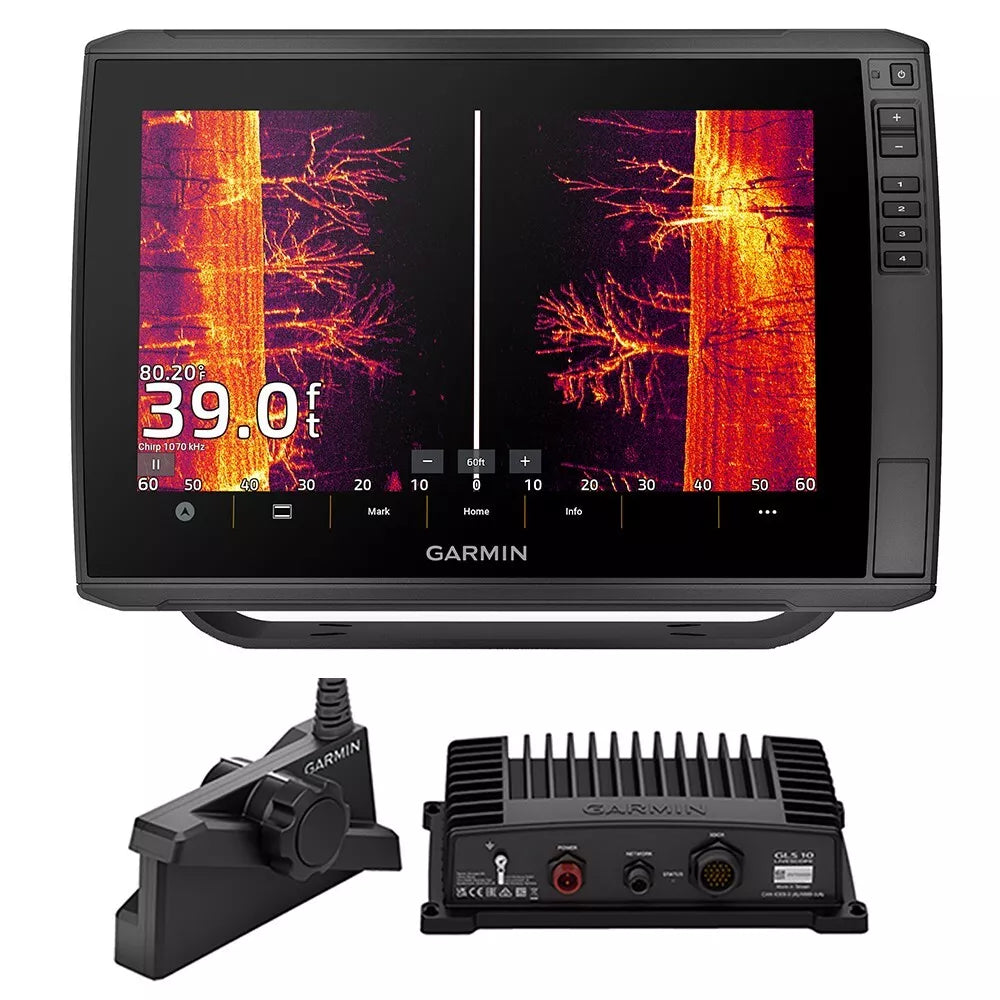

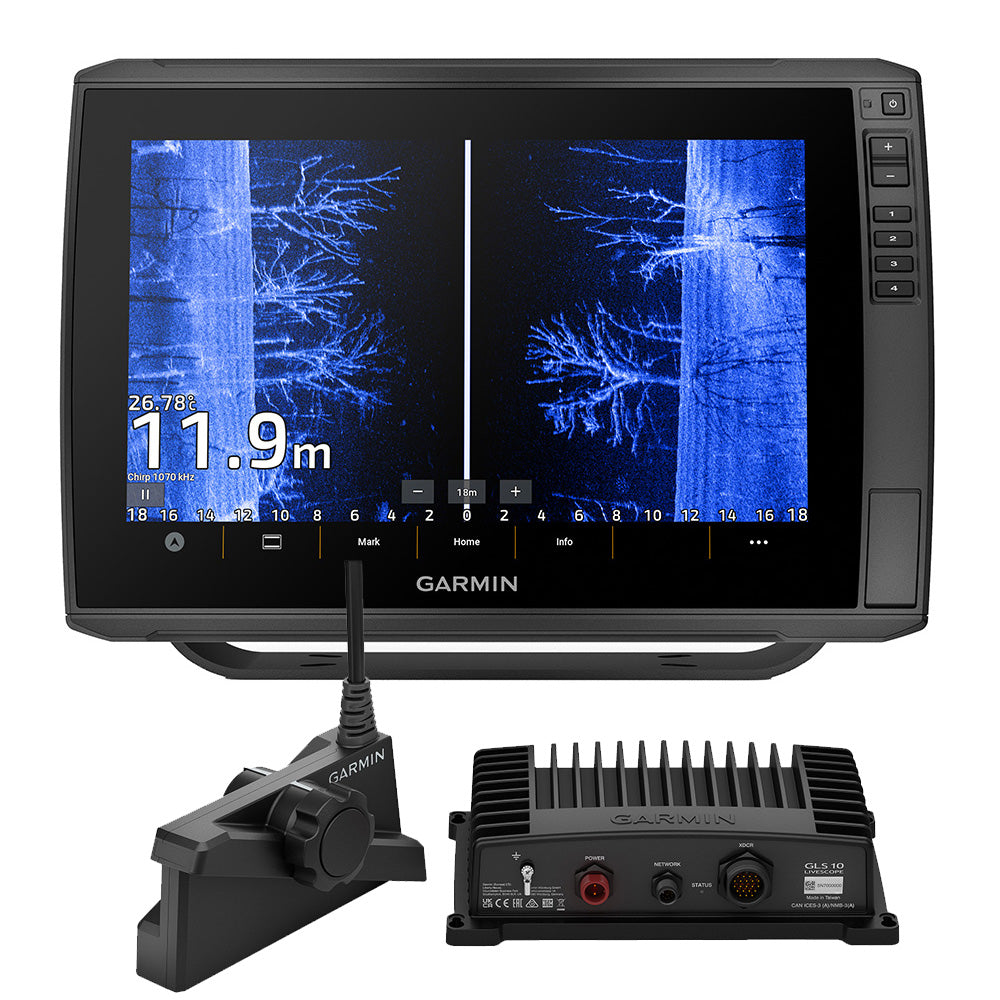

With Transducer

ECHOMAP Ultra 122sv or 126sv (depending on the version selected) with optional Garmin Navionics+
GT56UHD-TM transducer
Power cable

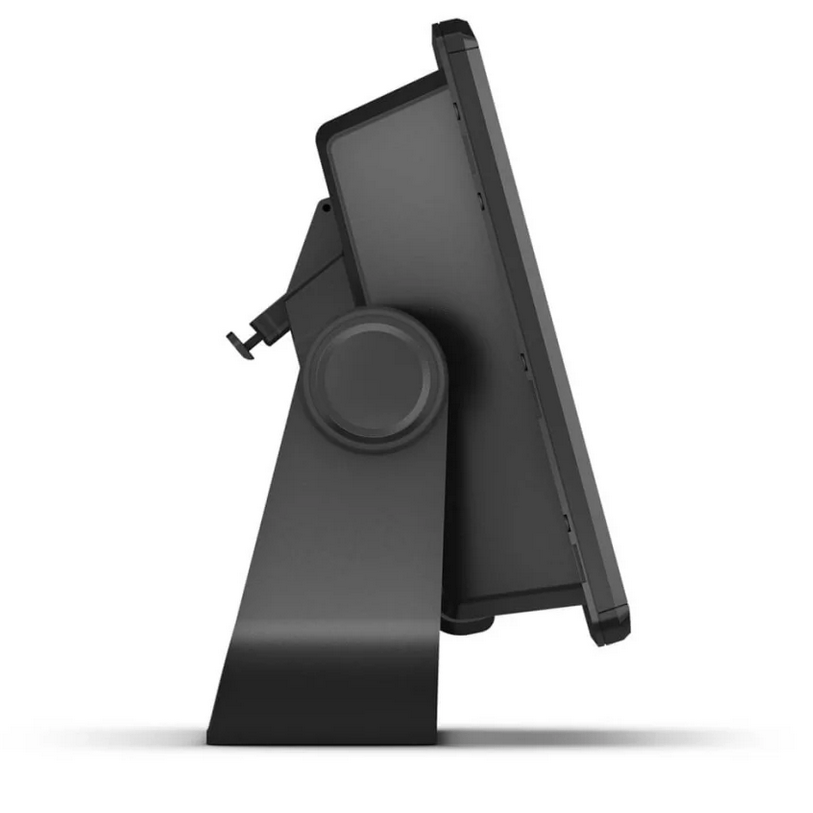

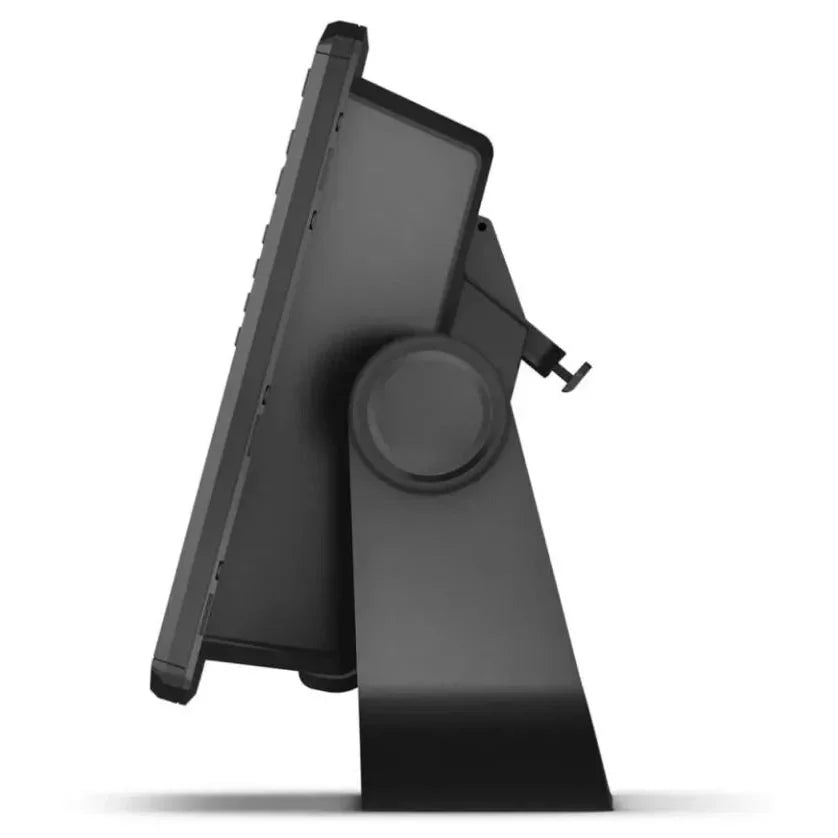

Bail mount with quick release cradle
Protective sun cover
Hardware
Documentation

Without Transducer

ECHOMAP Ultra 122sv or 126sv (depending on the version selected) with optional Garmin Navionics+
Power cable
Bail mount with quick release cradle
Protective sun cover
8-pin transducer to 12-pin sounder adapter cable
Hardware
Documentation

13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)

10” or 12” touchscreens
Supports Livescope™ sonar1 and more
Available with built-in Garmin Navionics+ mapping
Wirelessly network; share sonar, waypoints and routes2
Capture screen recordings to share fish catches
Multi-band gps for improved position accuracy

Weight: 5.5 lbs (2.5 kg)
Water Rating: IPX7
Display Type: WVGA, TN
Touchscreen: Yes
Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
Display Resolution: 1280 x 800 pixels
Mounting Options: Bail or flush
Input: Touchscreen with Keyed Assist

Maps & Memory:

Accepts Data Cards: 2 microSD cards
Waypoints: 5,000
Track Points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100

Sensors:

GPS: Yes
Glonass: Yes
Beidou: Yes
Galileo: Yes
Has Built-in Receiver: Tes
Receiver: 10 Hz
Support WaaS: Yes
Supports Multi-Band, Multi-Constellation GPS: Yes
NMEA 2000 Compatible: Yes

Built-in Maps:

Built-in Auto Guidance+: yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal: yes (see Additional)
Tide Tables: yes (see Additional)

Optional Map Support:

BLUECHART G3z: yes
BLUECHART G3 VISION: yes
LAKEVÜ G3: yes
LAKEVÜ G3 ULTRA: yes
GARMIN NAVIONICS+™: yes
GARMIN NAVIONICS VISION+™ : yes
TOPO 100K : yes
STANDARD MAPPING: yes
GARMIN QUICKDRAW CONTOURS: yes

Chartplotter Features

ACTIVECAPTAIN® Compatible: yes
AIS: Yes
DSC: Yes
Support Fusion-Link™ Compatible Radios: Yes
Saling Features: Yes

Electrical Features

Power Input: 9 to 18 Vdc
Typical Current Draw at 12 VDC: 2.5 A
Maximum Current Draw At 12 VDC: 5.0 A
Maximum Power Usage at 10 VDC: 36 W

Sonar Features

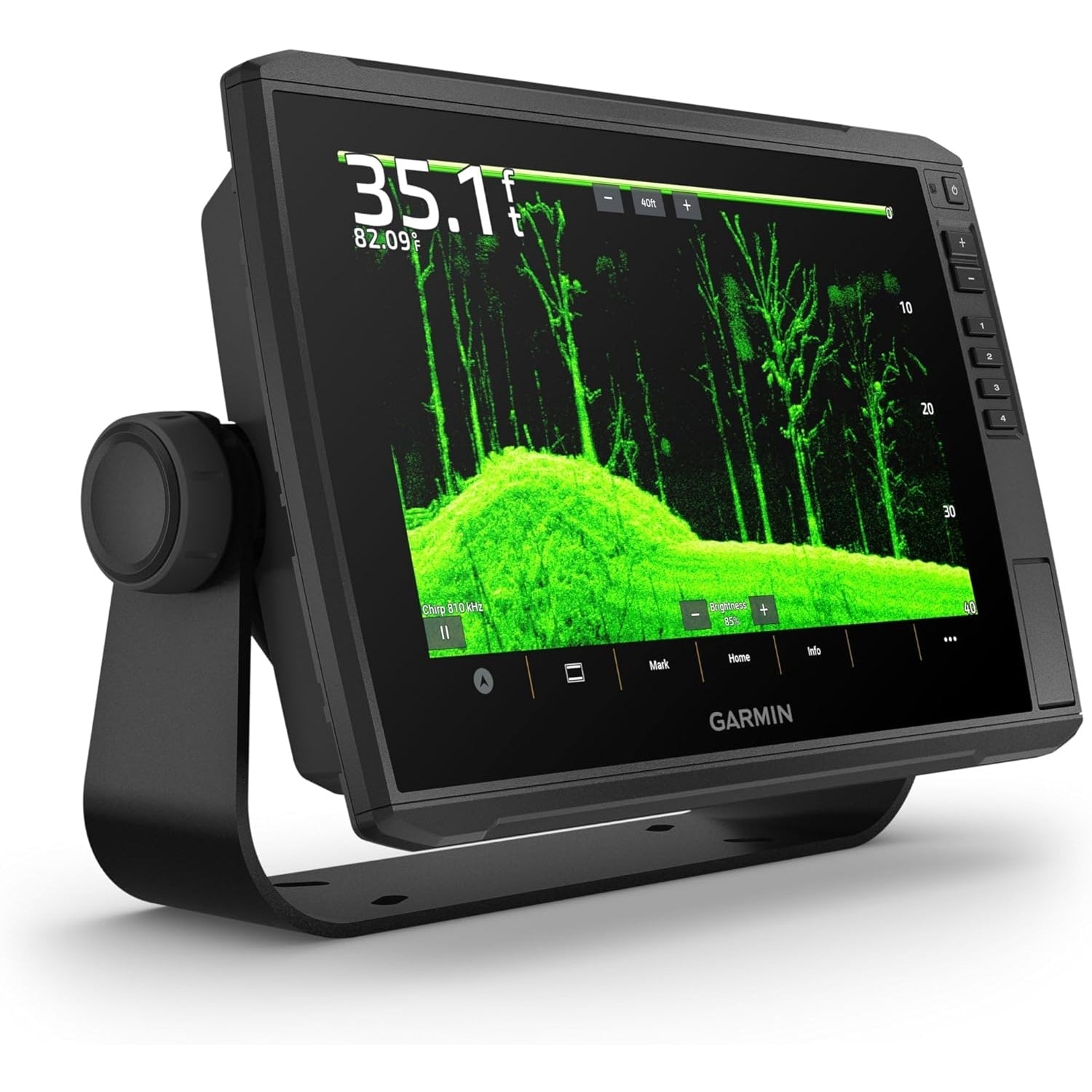

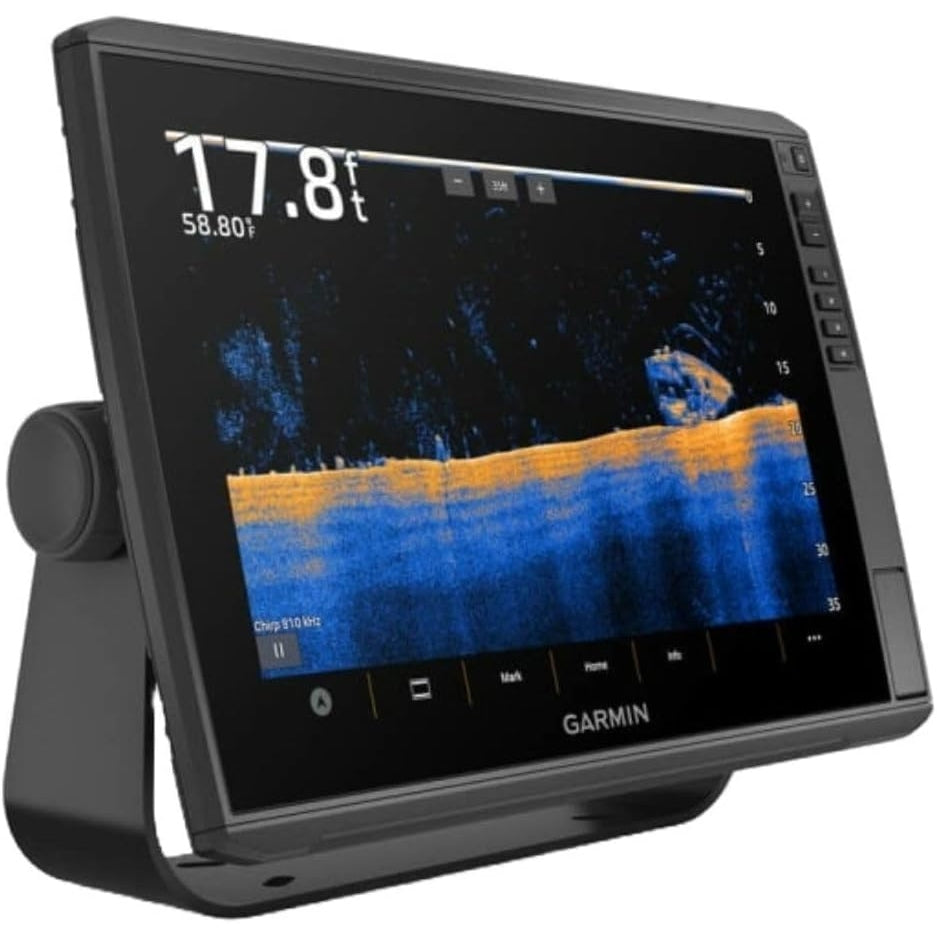

Display Sonar: Yes
Power Output: 600 W
Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜ: Built-in 260/455/800/1000/1200 kHz
SIDEVÜ: Built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR: Yes
Livescope: Yes

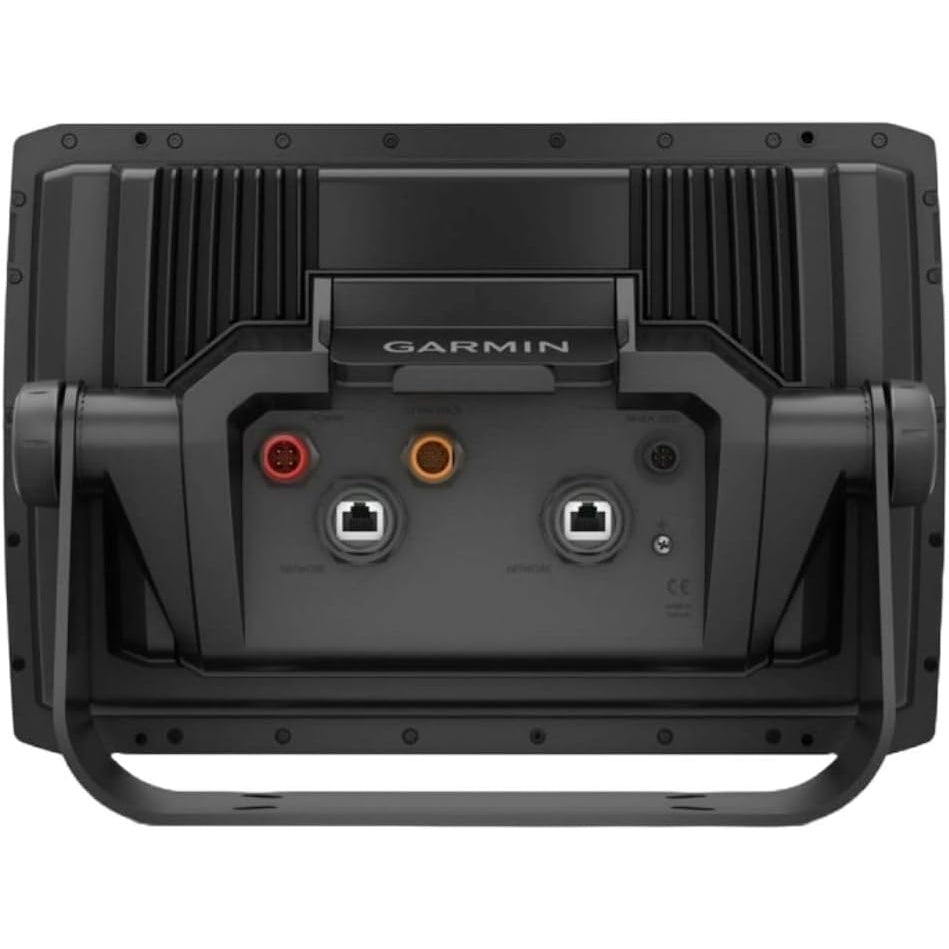

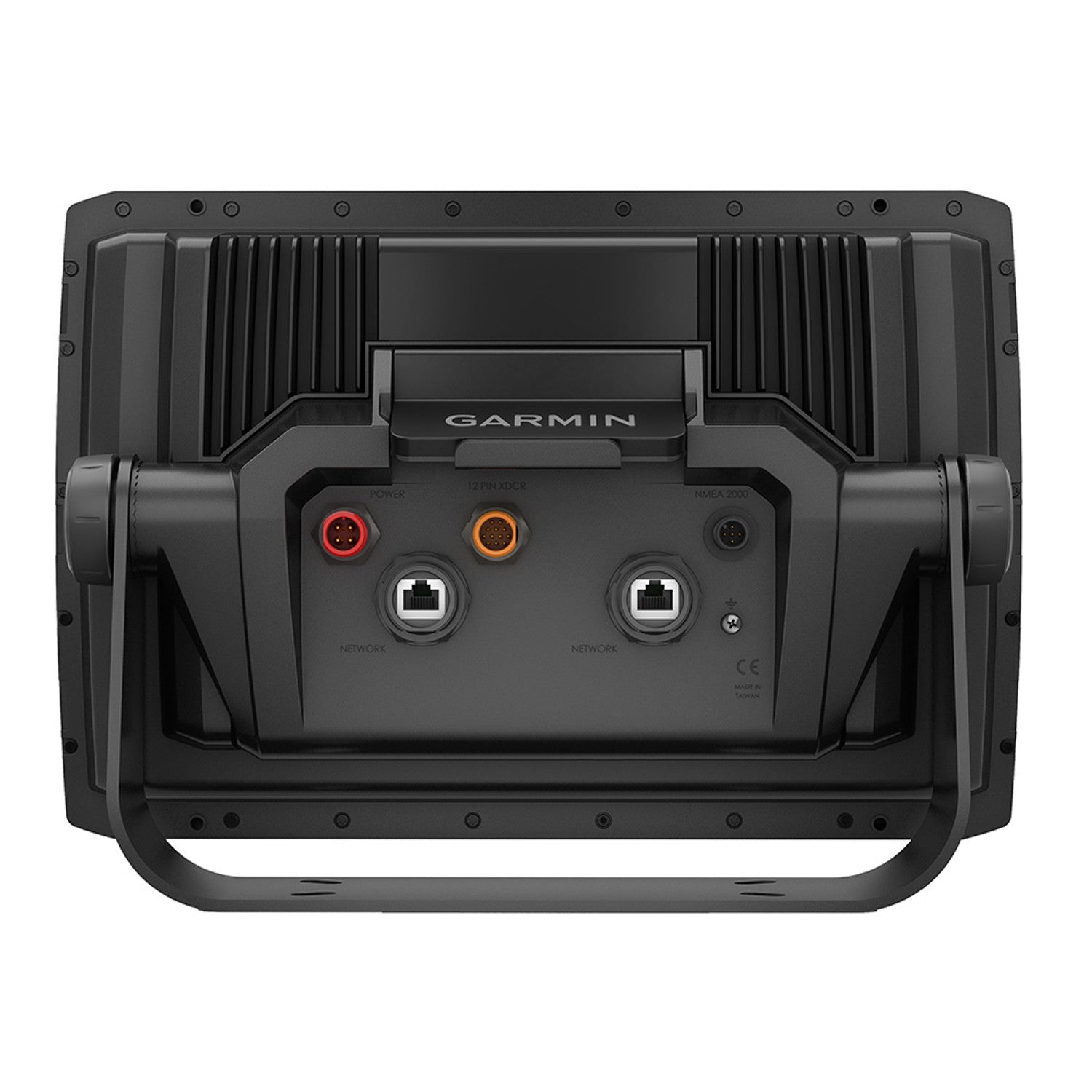

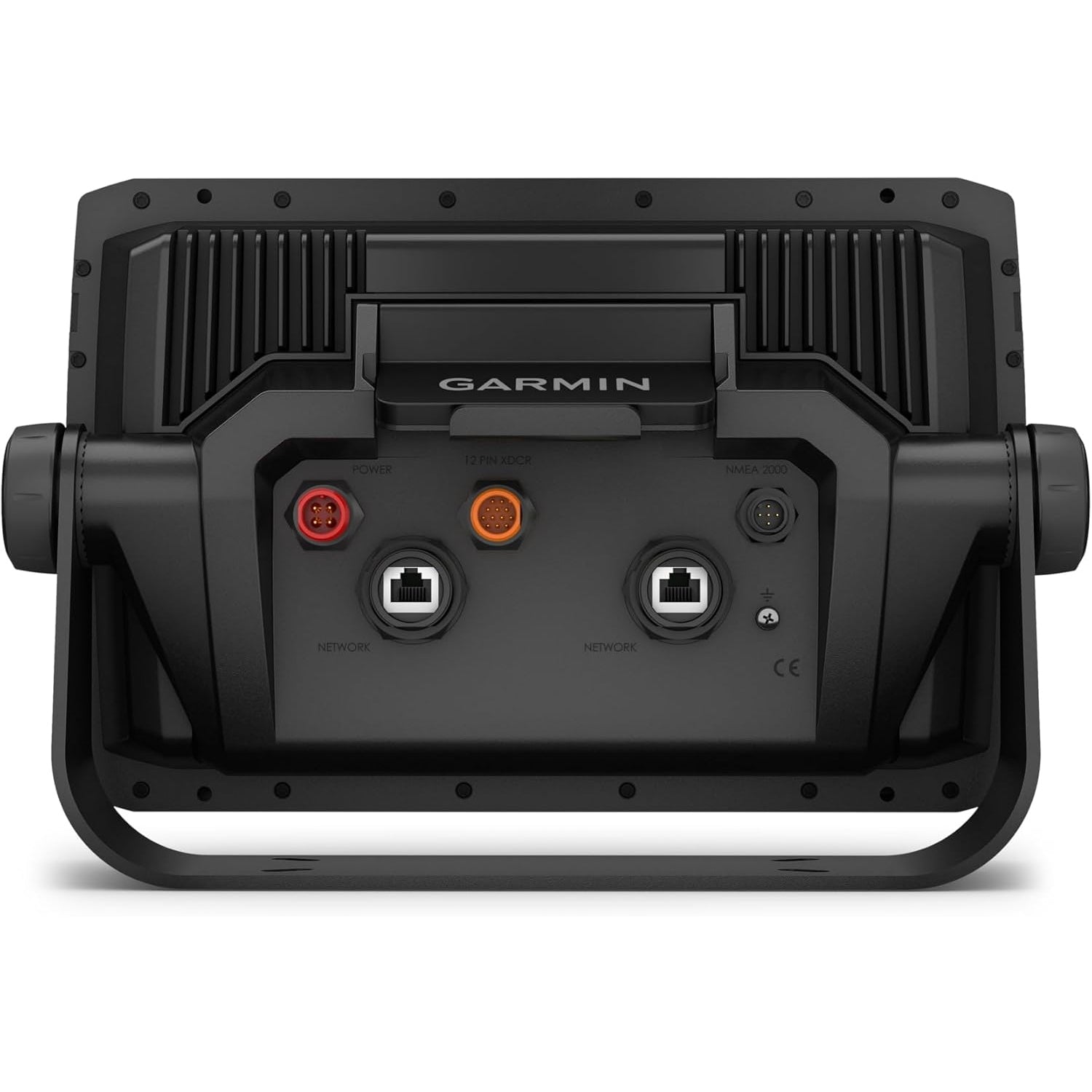

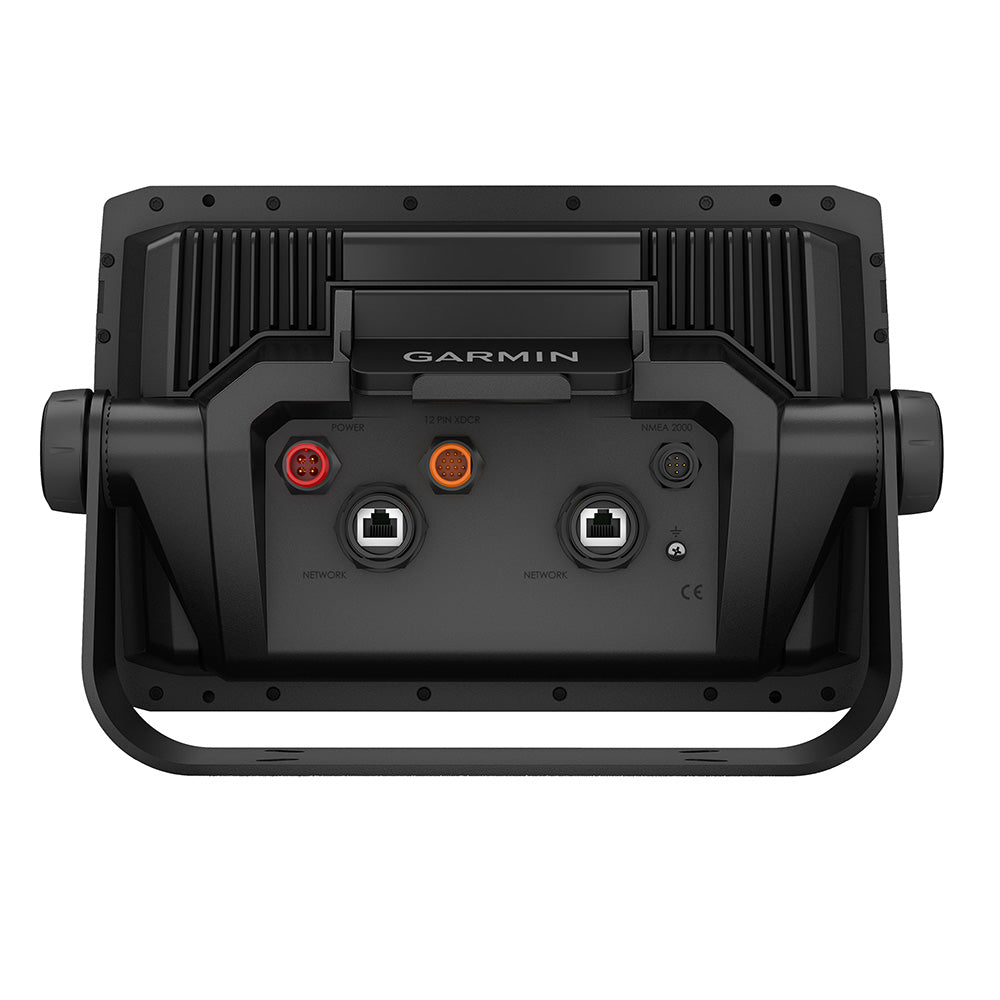

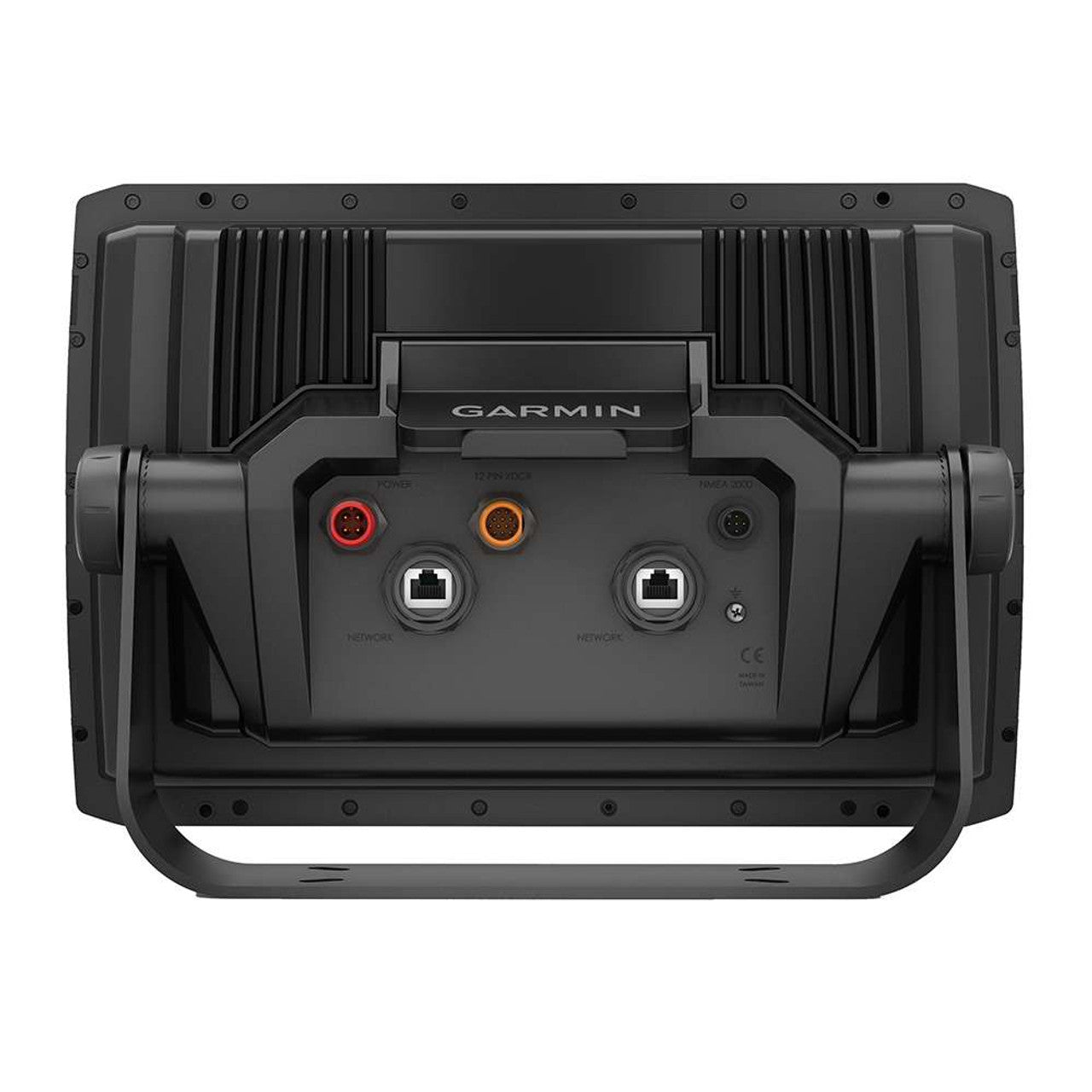

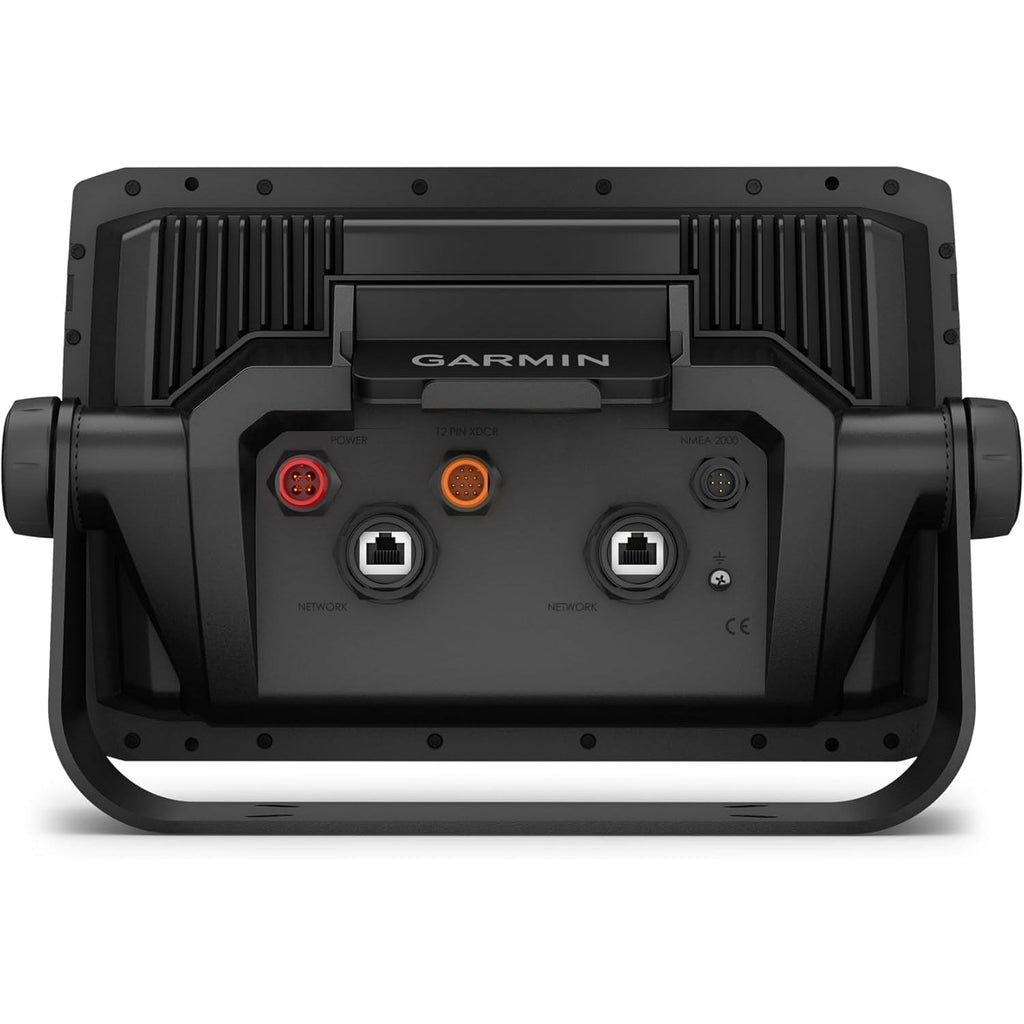

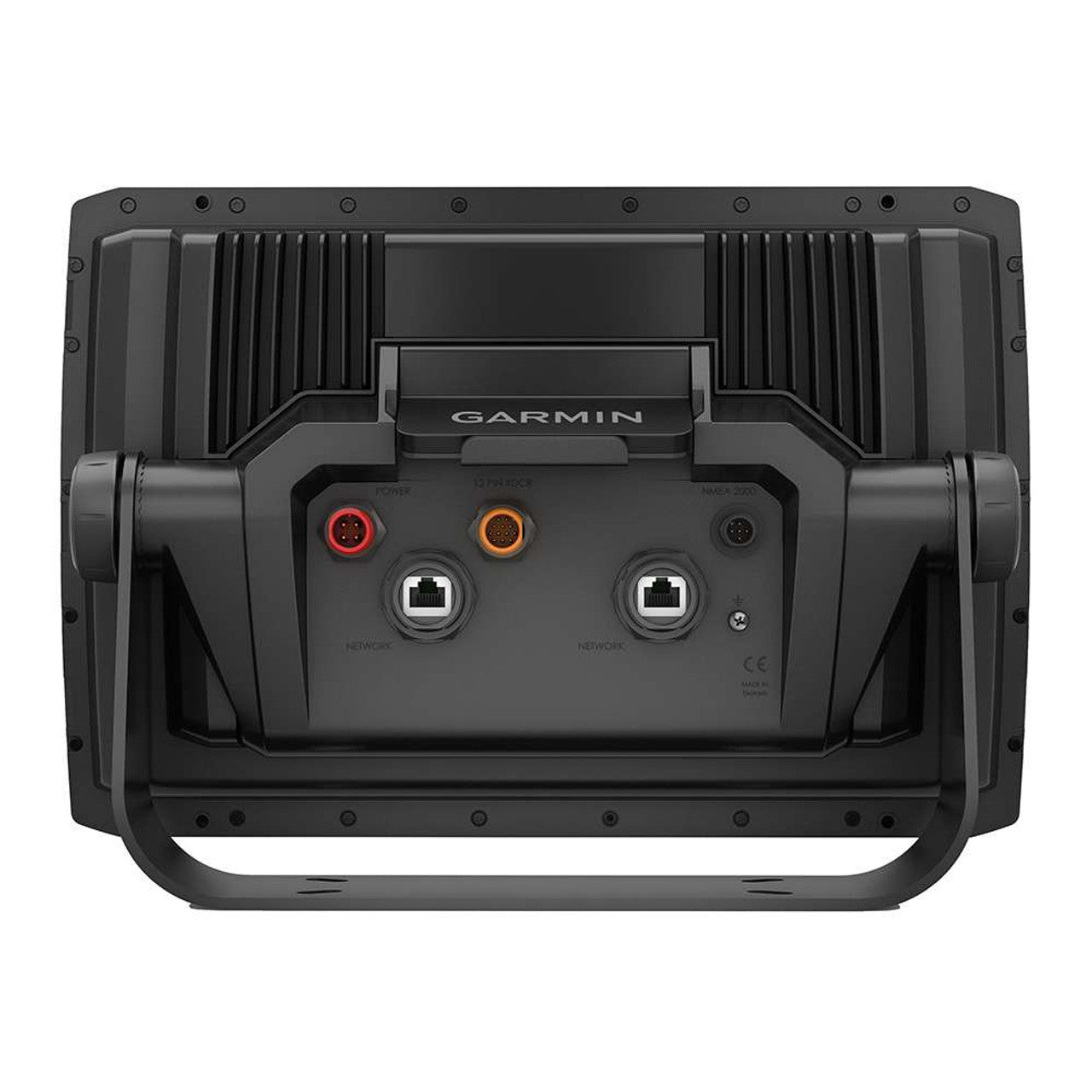

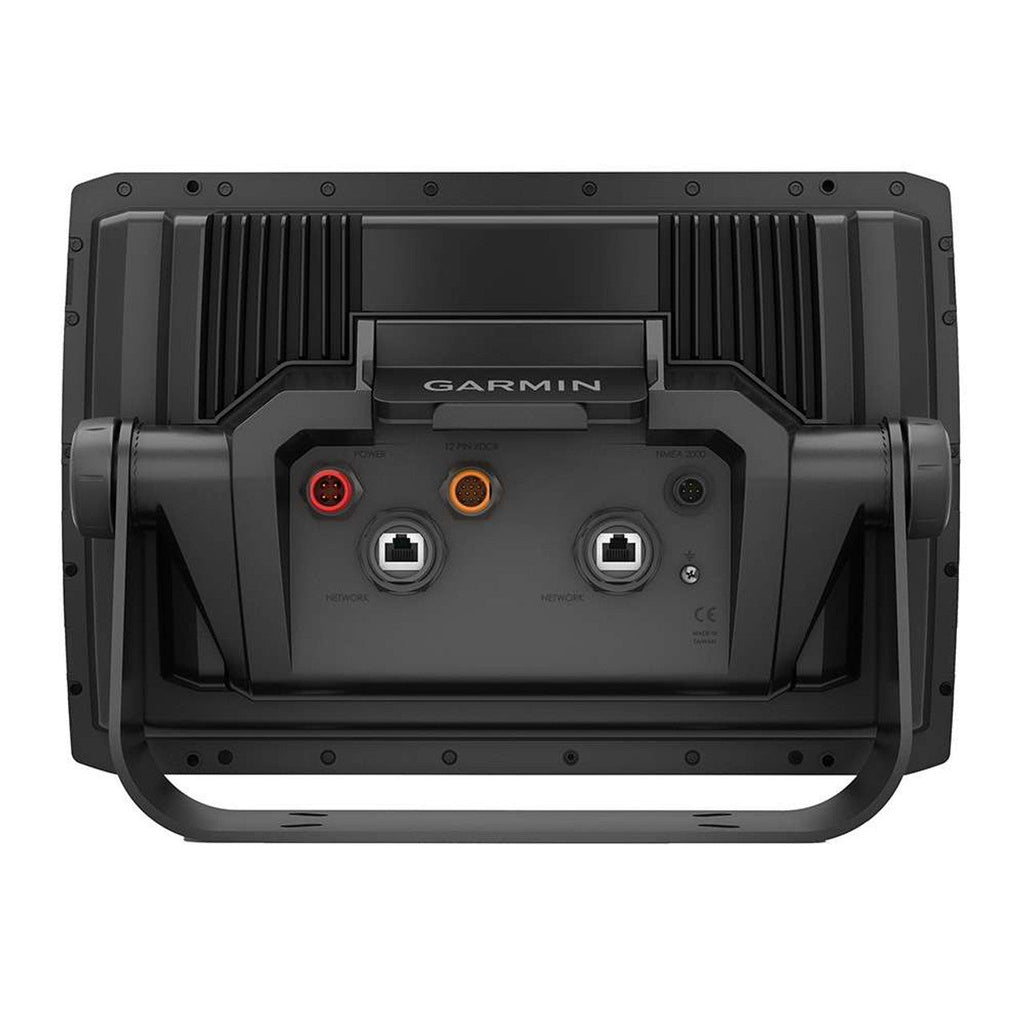

Connections:
