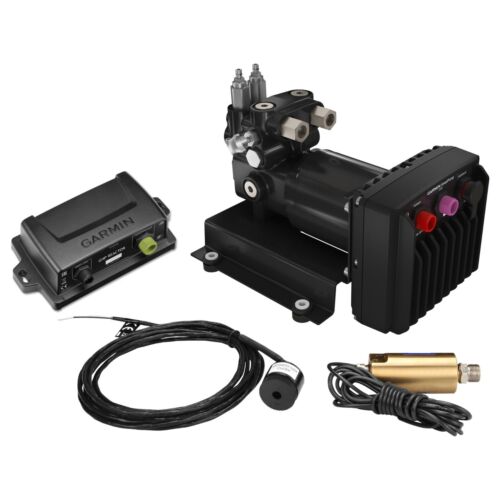

Reactor™ 40 Hydraulic Corepack with SmartPump v2

010-00705-78

RM22,308.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

EVERY CAPTAIN NEEDS A CO-PILOT

Designed for sailboats and powerboats, this Reactor 40 autopilot steer-by-wire corepack gives you the extra hand you need, so you can explore paradise worry-free.

GHC™ 50

SmartPump v2

Reactor 40 CCU (Course Computer Unit)

ECU (Electronic Control Unit) power cable

Interconnect cable

Shadow Drive

Buzzer

NMEA 2000® drop cables (2 meters)

NMEA 2000 power cable

NMEA 2000 T-connectors

Male and female terminators

Documentation

Dimensions (H x W x D): 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)

CCU

Dimensions: 3 19/32" diameter (91.4 mm)

Buzzer/Alarm

Dimensions (L × Diameter): 29/32" × 1.0" (23 mm × 25 mm)

This Reactor 40 standard corepack is the perfect companion for your boat’s steer-by-wire system.
Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.
Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.
Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.
Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience.

Dimensions (H x W x D): 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)
Weight: 16.5 lbs (7.5 kg)
Temperature range: From 5°F to 131°F (from -15°C to 55°C)
Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
Power cable length: 9 ft (2.7 m)
Power input: 11.5-30 Vdc
Fuse: 40 A, blade-type
Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
Flow rate: Configurable from 0 to 2.4 L per minute
Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

CCU Specifications

Dimensions: 3 19/32" diameter (91.4 mm)
Weight: 5.6 oz (159 g)
Temperature range: From 5°F to 131°F (from -15°C to 55°C)
Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
CCU cable length: 9.5 ft (3 m)
NMEA 2000 power input: 9-16 V
NMEA 2000 LEN: 3 (150 mA)

GHC 50 Specifications

Buzzer/Alarm Specifications
