Reactor™ 40 Steer-by-wire Corepack for Viking® VIPER™

010-00705-92

RM37,466.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

EVERY CAPTAIN NEEDS A CO-PILOT

Designed for sailboats and powerboats, this Reactor 40 autopilot steer-by-wire corepack gives you the extra hand you need, so you can explore paradise worry-free.

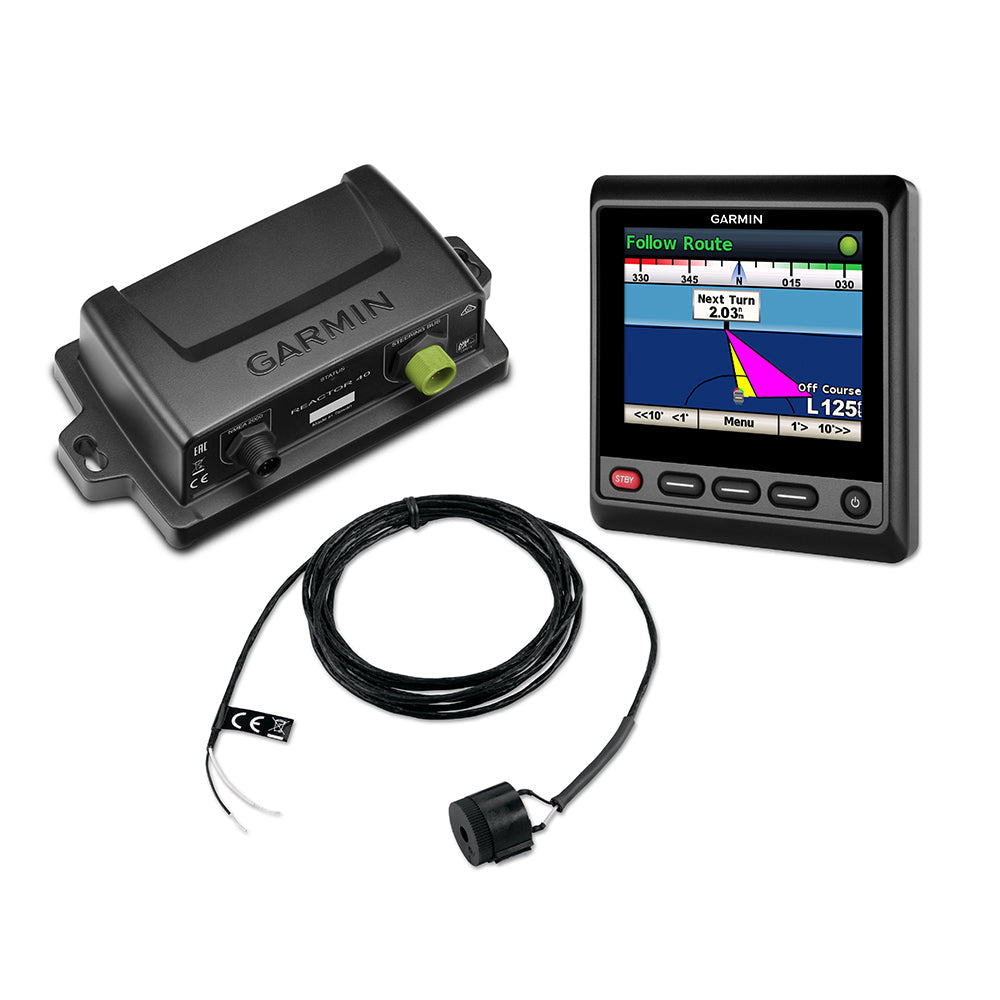

Reactor 40 CCU (Course Computer Unit)
GHC™ 50 helm control display
CCU cable
Buzzer
NMEA 2000® drop cables (2 meters)
NMEA 2000 power cable
NMEA 2000 T-connectors
Male and female terminators
Documentation

CCU

Dimensions: 3 19/32" diameter (91.4 mm)

Buzzer/Alarm

Dimensions (L × Diameter): 29/32" × 1" (23 mm × 25 mm)

This Reactor 40 standard corepack is the perfect companion for your boat’s steer-by-wire system.
Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.
Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.
Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.
Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience.

CCU Specifications

Dimensions: 3 19/32" diameter (91.4 mm)
Weight: 5.6 oz (159 g)
Temperature range: From 5°F to 131°F (from -15°C to 55°C)
Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
CCU cable length: 9.5 ft (3 m)
NMEA 2000 power input: 9-16V
NMEA 2000 LEN: 3 (150 mA)

GHC 50 Specifications

Buzzer/Alarm Specifications
