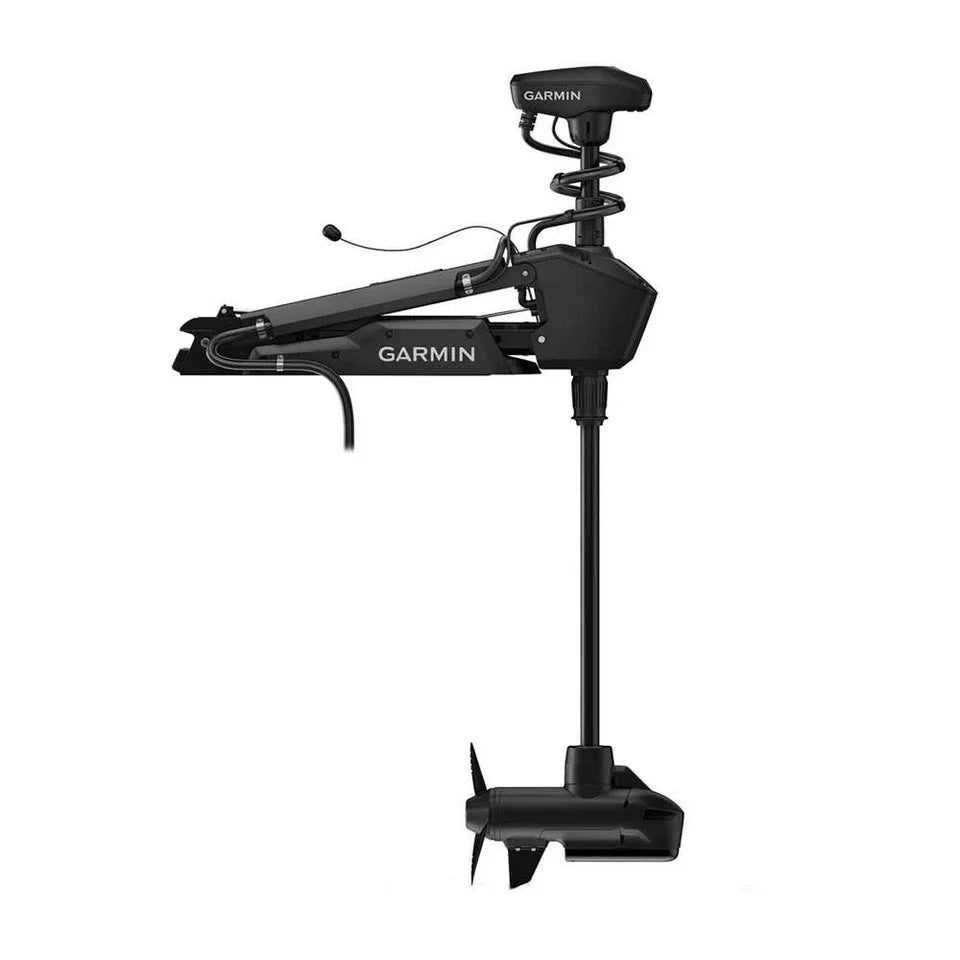

Force® Pro Trolling Motor

General

• For Use In: Freshwater, Brackish Water And Saltwater
• Mount Style: Scissor-Style Mount
• Max Thrust: 100 Lbs Per Iso 13342 Using High Efficiency Propeller At 36 V
• 80 Lbs Per Iso 13342 Using High Efficiency Propeller At 24 V
• Voltage: 24 V Or 36 V
• Electric Steering: Yes
• Lift-Assist: Dual Gas Springs
• Built-In Heading Sensor: Yes
• Built-In Gps: Yes (Dual Frequency Gps)
• Warranty: 3-Year, Limited Lifetime On Shaft
• Water Rating: Ipx7
• Mounting Location: Bow
• Wireless Remote: Yes (Included)
• Foot Pedal Compatible: Yes (Included)

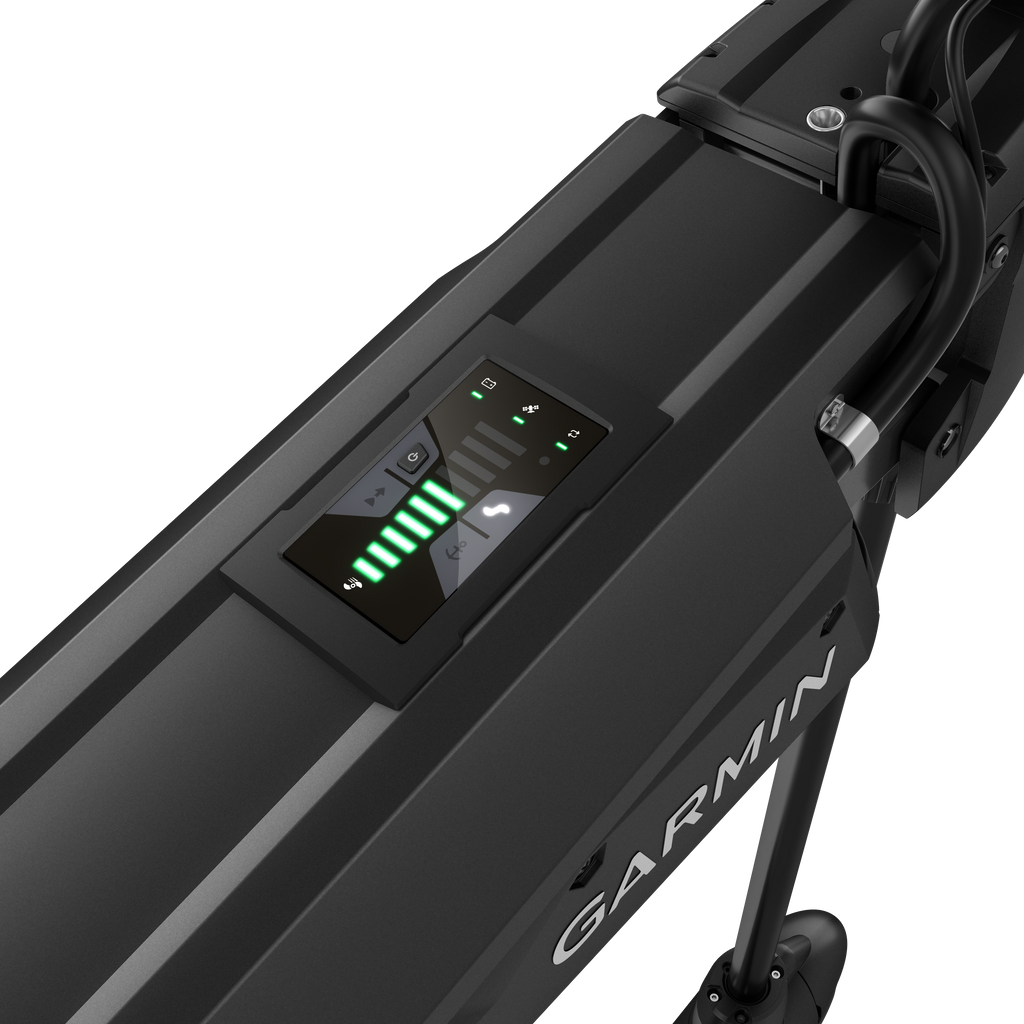

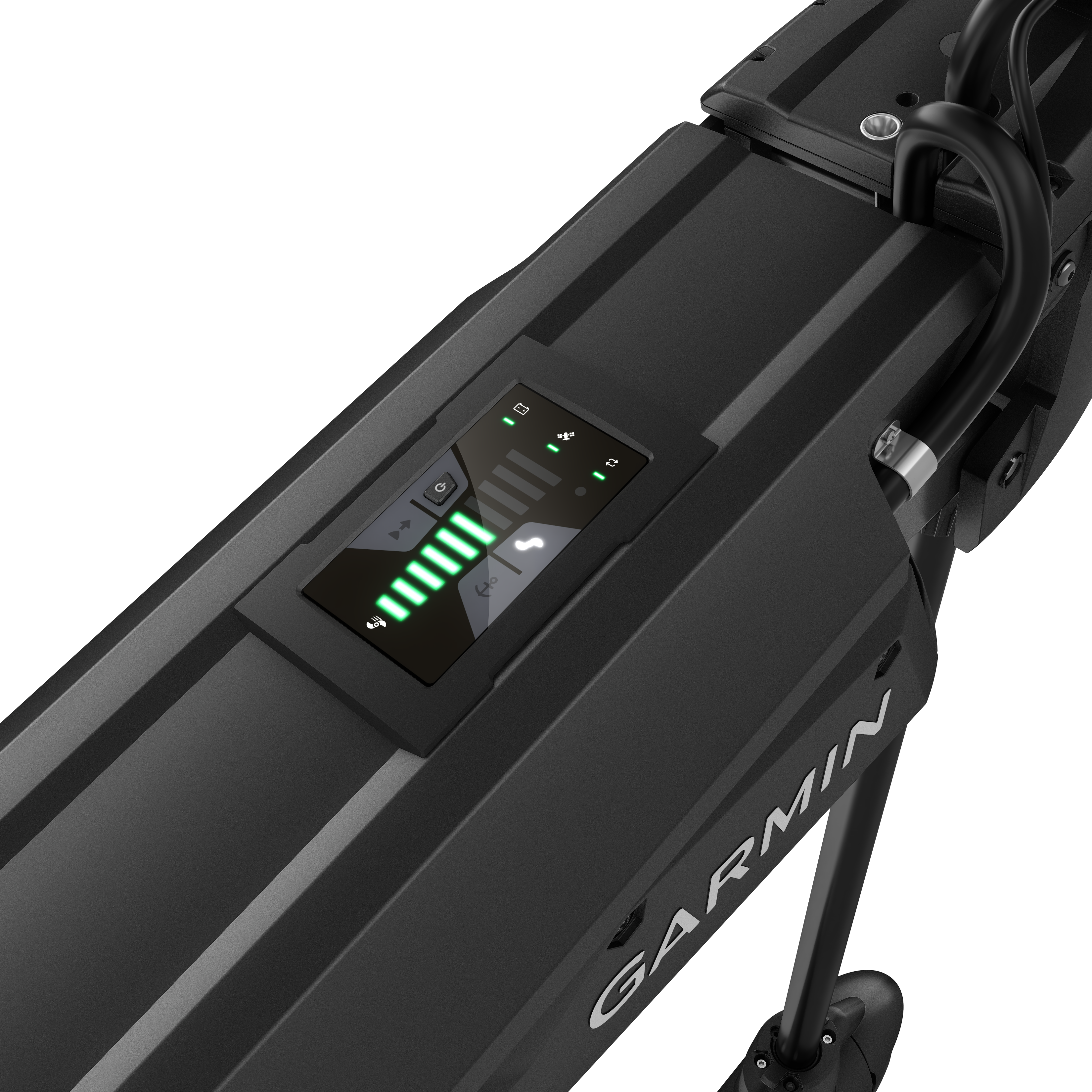

• Battery Indicator: Yes
• Variable Speed Control: Yes (20 Steps)
• Lighted Direction Indicator: Yes
• Deck Stabilizer Rod: Yes (Included)
• Quatix Remote Control Supported: Yes
• Manual Reverse Control: Yes

Sonar Features

• Frequencies Supported: Traditional: High-Wide Chirp (150-240 Khz)
• Clearvu/Sidevu: 455 Khz, 800 Khz, 1000 Khz
• Transmit Power: Traditional: 350 W
• Clearvü/Sidevü: 500 W
• Maximum Depth: Chirp Sonar: 800' Freshwater
• Clearvü: 400'
• Sidevü: 500'
• Depth/Speed/Temperature: Depth And Temperature
• Number Of Pins: 12-Pin (Orange Connector)

Autopilot Features

• Route Following: Yes
• Anchor Lock: Yes
• Smart Anchor Lock Features: Yes
• Anchor Lock Jog: Yes
• Heading Hold: Yes
• Cruise Control: Yes
• Gesture Features: Yes (Manual+, Heading Hold+, Jog+)

Foot Pedal Features

• Dimensions: 12" L X 9" W X 4 1/2" H
• Wireless Communication: Yes
• Power Installation: 12 V/24 V/36 V Wired Or Battery Powered (2 Aa)
• Aa Battery Life: 1 Full Season
• Water Rating: Ipx7
• Adjustable Pedal Resistance: Yes

Remote Features

• Display Size: 1.2" (30.2 Mm) Diameter
• Display Resolution: 240 X 240 Pixels
• Display Type: Color, Sunlight-Visible, Transflective Memory-In-Pixel (Mip)
• Chartplotter User-Programmable Keys: Yes
• Autopilot Feature Control: Yes
• Water Rating: Ipx7
• Battery Life: Typical Use With Backlight At Low, 43 Weeks
• Floats: Yes
